AMERICAN Products Used in Expansion at One of the World’s Wonders

May 29 , 2015
Customer Stories, Fire Protection, Water and Wastewater
ACIPCO’s products are seen at the material staging area at the Port of Mobile.

Read Business Alabama’s article on AMERICAN’s involvement with the Panama Canal Expansion – Granddaddy of Iron Refits the Panama Canal

Watch this June 11, 2015, video of the new locks on the Atlantic side being filled.

Read “How one Birmingham company helped expand the Panama Canal,” which appeared in the Birmingham Business Journal June 12, 2015.

It has been named one of the Seven Modern Wonders of the World with about 14,000 cargo ships passing through its two locks every year. In 2016, its wonder will expand as a third set of locks opens and Post-Panamax ships pass between the Atlantic and Pacific Oceans for the first time.

The $5.25-billion Panama Canal Expansion is estimated to take nine years to construct and will create a new lane of traffic along the Panama Canal to accommodate larger ships with more cargo capacity. The existing locks allow the passage of vessels carrying up to 5,000 TEU (Twenty-foot Equivalent Unit), while the new locks will accommodate Post-Panamax ships or vessels carrying up to 13,000 TEUs. The expansion will double the waterway’s capacity to meet demand growth. It will also help maintain the canal’s competitiveness and the value of the maritime route through Panama.

Hidden underneath these massive locks is a labyrinth of pipe and valves supplied by AMERICAN Cast Iron Pipe Company, headquartered in Birmingham, Alabama. AMERICAN’s products, including hydrants, will be used to deliver drinking water, provide fire protection and manage dewatering pumping systems.

“AMERICAN’s products, technical and sales support, and fabrication capacity make it stand out among the competition.”Sergi Ametller, electromechanical project manager with GUPC

“AMERICAN’s products, technical and sales support, and fabrication capacity make it stand out among the competition,” said Sergi Ametller, electromechanical project manager with Grupo Unidos por el Canal (GUPC). “They fulfilled our technical specifications and had the production capacity for our stringent delivery schedule.”

According to Gabe Restrepo, ACIPCO International Sales Latin American Sales area manager, existing water transmission lines on the Pacific and Atlantic sides had to be relocated to maintain water service to the surrounding communities. New lines were also needed for water distribution, fire protection and a dewatering system. In total, more than 80,000 feet of AMERICAN Ductile Iron Pipe in 4- to 30-inches in diameter were installed for the Panama Canal Expansion project. AMERICAN Flow Control (AFC) Series 2500 gate valves in sizes 3- to 12-inches in diameter and AFC Series 52-SC swing check valves were used in the relocation of existing water mains, new water lines, a dewatering system and fire protection systems. AFC also supplied 4 1/2-inch American-Darling Mark 73-5 hydrants.

“Where the lines cross under the canal, they do so through pipe utility viaducts, which were built under the canal at each site,” said Restrepo. “The 30-inch flanged pipe in the cross-under had to meet a rigorous field test pressure of 450 psi. This is because of the lines’ high 300 psi operating pressure and the installation location directly beneath where Post-Panamax ships will pass.”

Restrepo said supplying the products needed and meeting the technical specifications was a collaborative effort among many departments and divisions at AMERICAN, including International Sales, Customer Service, Purchasing, Research, Traffic, Shipping, AMERICAN Ductile Iron Pipe and AMERICAN Flow Control. “The expansion will have global implications as larger ships that were once unable to pass through the Panama Canal will now be able to do so,” he said. “We’re proud to be a part of this chapter in the canal’s more than 100-year history.”

AMERICAN Cast Iron Pipe Company was founded in 1905, and manufactures ductile iron pipe, spiral-welded steel pipe, fire hydrants and valves for the waterworks industry and electric-resistance-welded steel pipe for the oil and natural gas industries. AMERICAN’s diversified product line also includes static castings and high-performance fire pumps.

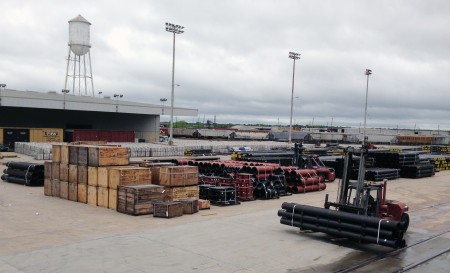

ACIPCO’s products are seen at the material staging area at the Port of Mobile.

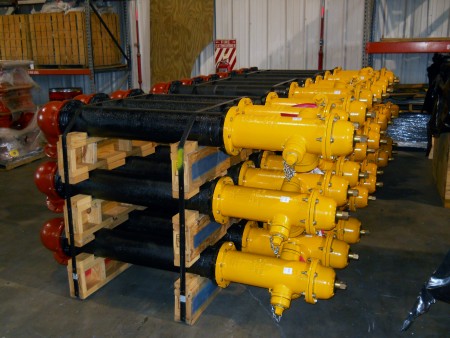

AMERICAN Flow Control American-Darling Mark 73-5 hydrants staged at ACIPCO’s warehouse prior to shipment.
AMERICAN Ductile Iron Pipe being loaded onto a vessel at the Port of Mobile.

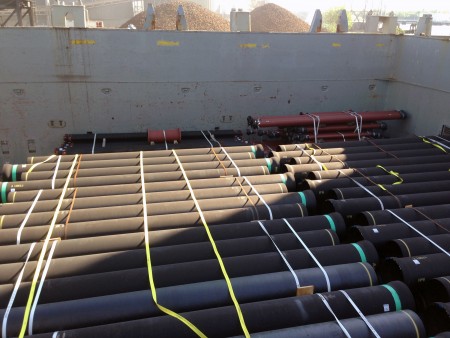

Pipe is loaded onto the vessel at the Port of Mobile.

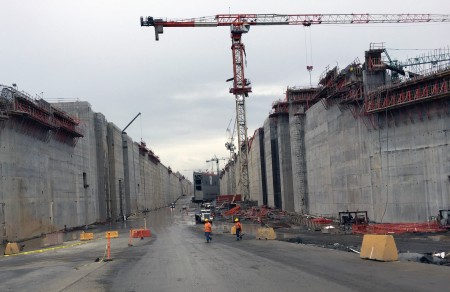

Construction at the third set of locks in the Panama Canal Expansion Project.
Installation on the Pacific side “cross under” of 24-inch and 30-inch AMERICAN pipe used in the relocation of existing water lines. The contractor applied a finish paint to the pipe onsite.

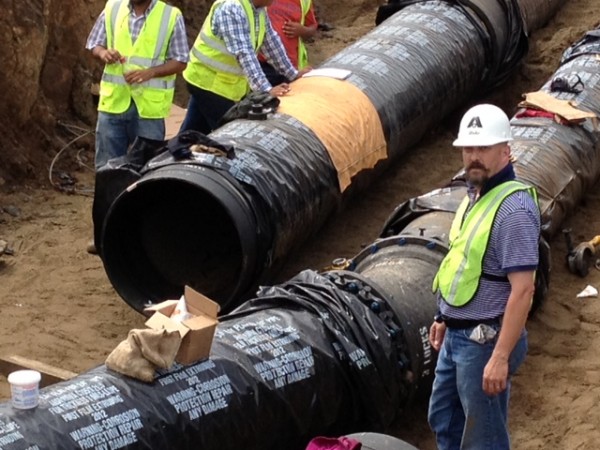

AMERICAN engineers offer on-site technical support during the installation of 24-inch and 30-inch water transmission lines.
